15kV Range – High Voltage Couplers

15kV RANGE – 15,000 Volts, 800Amps, IP68, open cut coupler

15KV-Armour-ISO
15KV-Unarm-Side
15KV-Unarm-ISO

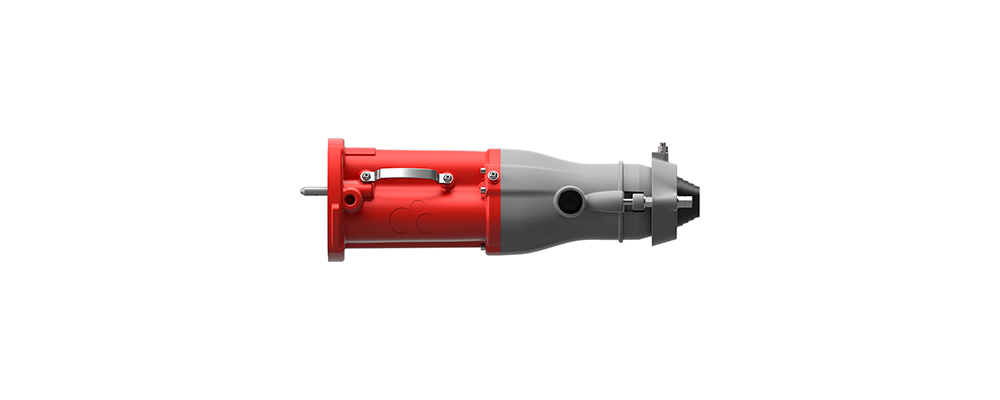

15KV-Armour-Side

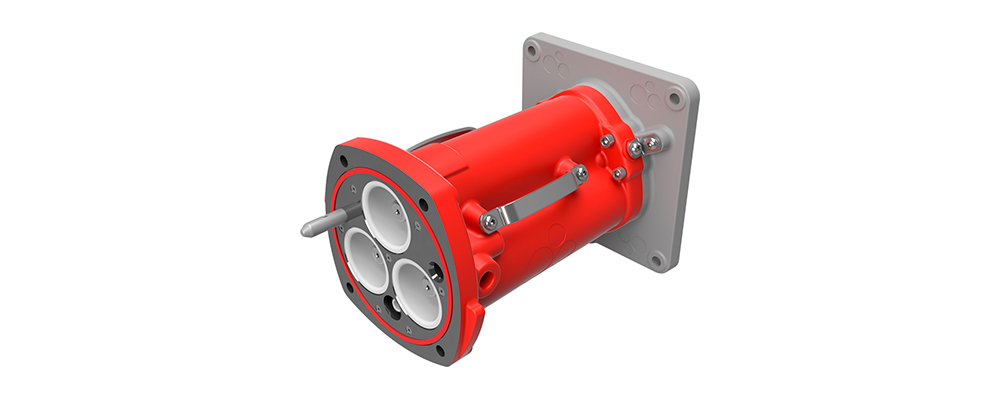

15KV-Adap-Iso

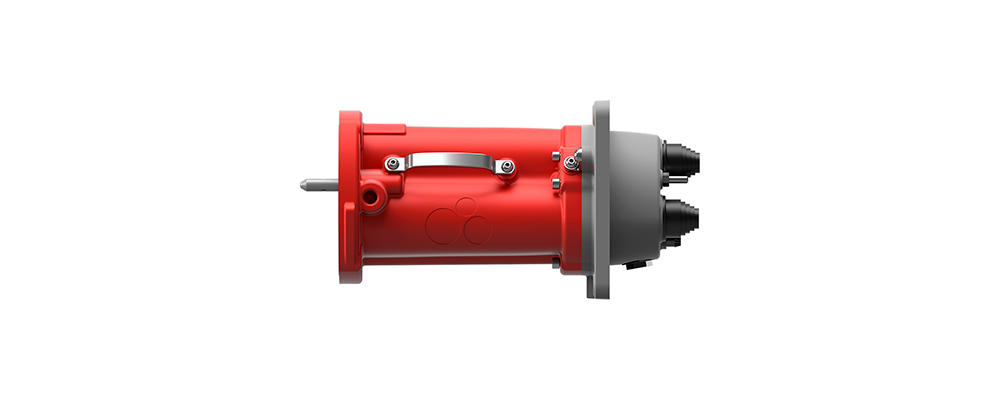

15KV-Adap-Side
15KV-Face

The 15kV range was inspired by the 114BKA, 4 Bolt coupler.

It was designed with the intention to create a coupler for 15,000 volts that complies requirements for markets familiarized with north America standards.

This design incorporates the pilot with the earth providing greater earth connectivity and pilot control. It also allows the design to enclose the guide pin into the body of the casting, protecting the pin from external damage.

This design has been in service since 2004

Features

  • Solid face and body Casting
  • Higher Mpa Aluminium Material
  • Detachable Adaptor Flange
  • Earth Pilot Connector
  • Handles
  • All air expelled on joining
  • Silicon seal for face
  • Full phase to earth segregation
  • Arc extinguishing Phase Insulators
  • Genderless design
  • Silicon Phase Connectors

Accessories

  • Adaptor – Gear Mount
  • Cast Protection Cover
  • Contacts Crimp
  • Contacts Soldered
  • Gland – Armored
  • Gland – Unarmored
  • Insulated End Cover
  • Slide Hammer
  • Coupling Tool
  • 3-Way Splitters
  • Stands and Skids.

Technical Information

Specs

Volts15000
Amp800
LOA665mm
Weight16kg
Volume4lts

Test Results

Manufactured toAS/NZS 1300:2009
AS/NZS 60079.0:2008
Through Fault Current
at 10 minute intervals
20kA for 0.3 seconds
20kA for 1.0 seconds
AC HV Withstand24kV for 1 minute
50kV for 1 minute
35kV for 6 hours
Impulse Voltage110KV
Partial Discharge10pC during 6 hour – 35kV
withstand type test.
0.6pC After 6 hour – 35kV
withstand type test.
Temperature RiseΔ t ≤ 5°C @ 800A
