PL RANGE – Available in 1100-3300 volts, 300 0r 425Amp, restrained plug and receptacle.

PL RANGE – Available in 1100-3300 volts, 300 0r 425Amp, restrained plug and receptacle.

PL-Plug-iso-blue-1
PL-Plug-side-blue
PL-Plug-top-Blue
PL-Plug-iso-1
PL-Plug-side
PL-Plug-top
PL-Receptacle-iso-blue-1
PL-Receptacle-side-blue
PL-Receptacle-front-blue
PL-Receptacle-iso-1
PL-Receptacle-side
PL-Receptacle-front
PL-Receptacle-top-blue
PL-Plug-front-blue

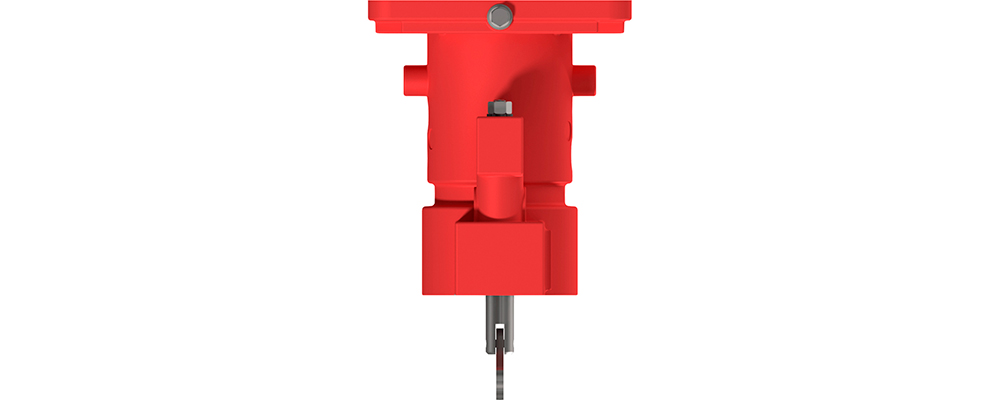

PL-Receptacle-top
PL-Plug-front

Our PL range covers 300 – 425 Amp, with phase rotation to give 1100 or 3300 volts.

We also offer the 4 pin and 6 pin range.

The restrained plug and receptacle range is suitable for use in mining and commercial applications such as Group 1 hazardous mining operations, metalliferous mines and tunneling projects. The benefit of the PS and PL options is that we can now offer the full suite of high voltage bolted couplers and low voltage restrained range.

Features

  • Single solid contacts
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Lightest product on the market
  • Full phase to earth segregation

Accessories

  • Silicone Protection Cover
  • Contacts Crimp
  • Contacts Soldered
  • Insulated End Cover

Technical Information

Specs

Volts660 to 3300
Amp300 to 425
Receptacle Weight10.7kg
Plug Weight9.0kg
MaterialStainless Steel

Test Results

AC HV Withstand4.2kV – 8.6kV
for 1 minute
Compliant to:AS/NZS 1299:2009
AS/NZS 60079,0:2012
AS/NZS 60079,1:2015
Through Fault Current at
10 minute intervals
25kA for 0.2 seconds
25kA for 0.2 seconds
Temperature Rise425A

Technical Manual
