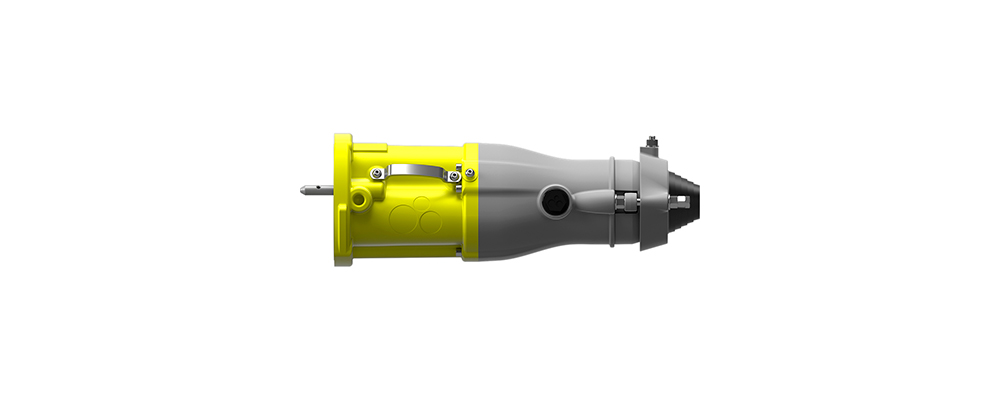

8.7kV RANGE – 8,700 Volts, 800Amps, IP68, open cut coupler

8.7kV RANGE – 8,700 Volts, 800Amps, IP68, open cut coupler

8-3
8-2
8-4
8-6
8-5
8-7
8-1

The 8.7kV range was inspired by the 15,000 volts 4 Bolt coupler.

It was designed with the intention to create a smaller coupler for only 8,700 volts.

Utilising one solid face and body casting, the 8.7kV range provides a strong uniform casting and greater protection to the phase insulators.

This design incorporates the pilot with the earth providing greater earth connectivity and pilot control. It also allows the design to enclose the guide pin into the body of the casting, protecting the pin from external damage.

This design has been in service since 2008

Features

  • Solid face and body Casting
  • Higher Mpa Aluminium Material
  • Detachable Adaptor Flange
  • Earth Pilot Connector
  • Handles
  • All air expelled on joining
  • Silicon seal for face
  • Full phase to earth segregation
  • Arc extinguishing Phase Insulators
  • Genderless design
  • Silicon Phase Connectors

Accessories

  • Adaptor – Gear Mount
  • Cast Protection Cover
  • Contacts Crimp
  • Contacts Soldered
  • Gland – Armored
  • Gland – Unarmored
  • Insulated End Cover
  • Slide Hammer
  • Coupling Tool
  • 3-Way Splitters
  • Stands and Skids.

Technical Information

Specs

Volts8700
Amp800
LOA590mm
Weight14kg
Volume2.1lts

Test Results

Manufactured toAS/NZS 1300:2009
AS/NZS 60079.0:2008
Through Fault Current
at 10 minute intervals
20kA for 0.3 seconds
20kA for 1.0 seconds
AC HV Withstand35kV for 1 minute
Impulse Voltage95KV
Temperature RiseΔ t ≤ 5°C @ 800A
