PS RANGE – Available in 660-1100 volts, 150 amps, restrained plug and receptacle

PS RANGE – Available in 660-1100 volts, 150 amps, restrained plug and receptacle

ap-product-menu-_0005_PS-Range
PS-Plug-top

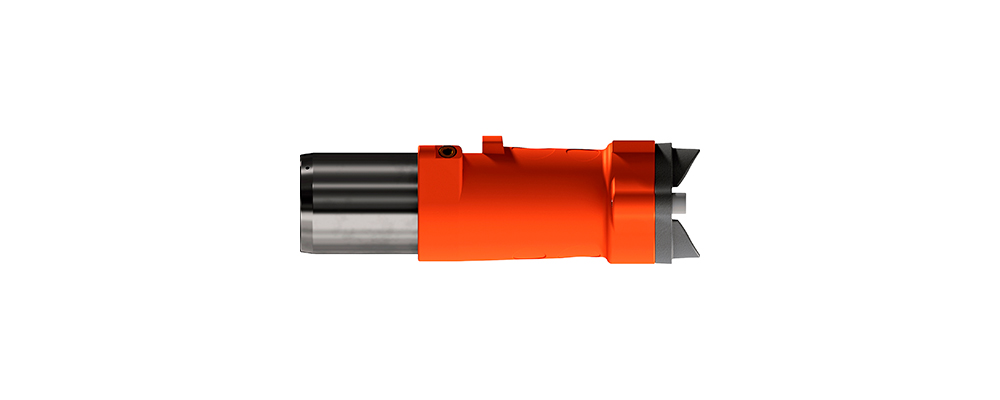

PS-Plug-side

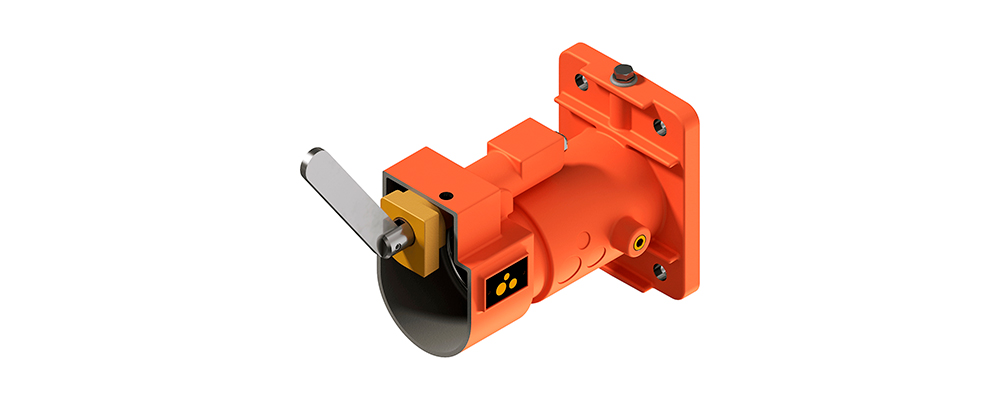

PS-Receptacle-iso-1
PS-Receptacle-side
PS-Plug-front
PS-Receptacle-front

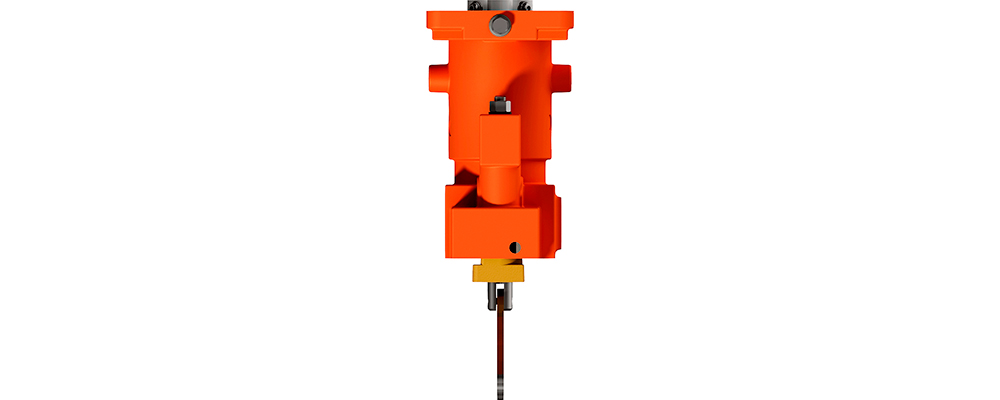

PS-Receptacle-top

Our PS range covers 150 Amp, with phase rotation to give 660 or 1100 volts.

Due to our 40+ years of experience, we are well known in the industry for our advanced designs. This coupled with countless hours of extensive research and development, have made AusProof the market leaders in improving safety and reliability in the mining industry.

This reputation has resulted in numerous mines approaching us to design and develop a new advanced range of plugs and receptacles.

Features

  • Single solid contacts
  • Easy termination
  • Easy flameproof repair
  • Full solid earth connectivity throughout product
  • Lightest product on the market
  • Full phase to earth segregation

Accessories

  • Silicone Protection Cover
  • Contacts Crimp
  • Contacts Soldered
  • Insulated End Cover

Technical Information

Specs

Volts660 to 1100
Amp150
Receptacle Weight(kg)7.9kg
Plug Weight(kg)4.1kg
MaterialStainless Steel

Test Results

Compliant to:AS/NZS 1299:2009
AS/NZS 60079.0:2012
AS/NZS 60079.1:2015
Through Fault Current at
10 minute intervals
12.5kA for 0.2 seconds
12.5kA for 0.2 seconds
AC HV Withstand3.32kV – 4.2kV
for 1 minute
Temperature Rise150A

Technical Manual
